How to install Pigsty?

Install Pigsty with 4 steps: Prepare, Download, Configure and Install.

Also check offline installation if you don’t have the Internet access.

Short Version

Prepare a fresh Linux x86_64 node that runs compatible OS, then run as a sudo-able user:

curl -L | bash

It will download Pigsty source to your home, then perform configure and install to finish the installation.

cd ~/pigsty   # get pigsty source and entering dir
./bootstrap   # download bootstrap pkgs & ansible [optional]
./configure   # pre-check and config templating   [optional]
./install.yml # install pigsty according to pigsty.yml

A pigsty singleton node will be ready with Web Interface on port 80/443 and Postgres service on port 5432. You can add more nodes into Pigsty and deploy modules on them.

Example: Online Singleton Installation on Ubuntu 22.04:


Example: Install with Offline Package (EL8)



Check Preparation for a complete guide of resource preparation.

Pigsty support the Linux kernel and x86_64/amd64 arch. It can run on any nodes: bare metal, virtual machines, or VM-like containers, but a static IPv4 address is required. The minimum spec is 1C1G. It is recommended to use bare metals or VMs with at least 2C4G. There’s no upper limit, and node param will be auto-tuned.

We recommend using fresh RockyLinux 8.9 or Ubuntu 22.04.3 as underlying operating systems. For a complete list of supported operating systems, please refer to Compatibility.

Public key ssh access to localhost and NOPASSWD sudo privilege is required to perform the installation, Try not using the root user. If you wish to manage more nodes, these nodes needs to be ssh / sudo accessible via your current admin node & admin user.

Pigsty relies on Ansible to execute playbooks. you have to install ansible and jmespath packages fist to run the install procedure. This can be done with the following command, or through the bootstrap procedure, especially when you do not have internet access..

sudo dnf install -y ansible python3.11-jmespath python3-cryptography
sudo yum install -y ansible   # EL7 does not need to install jmespath explicitly
sudo apt install -y ansible python3-jmespath
brew install ansible


You can get & extract pigsty source via the following command:

curl -fsSL | bash
Download Example Output
$ bash -c "$(curl -fsSL"
[v2.7.0] ===========================================
$ curl -fsSL | bash
[Download] ===========================================
[ OK ] version = v2.7.0 (from default)
curl -fSL -o /tmp/pigsty-v2.7.0.tgz
########################################################################### 100.0%
[ OK ] md5sums = some_random_md5_hash_value_here_  /tmp/pigsty-v2.7.0.tgz
[Install] ===========================================
[ OK ] install = /home/vagrant/pigsty, from /tmp/pigsty-v2.7.0.tgz
[Resource] ===========================================
[HINT] rocky 8  have [OPTIONAL] offline package available:
curl -fSL -o /tmp/pkg.tgz
curl -fSL -o /tmp/pkg.tgz # or use alternative CDN
[TodoList] ===========================================
cd /home/vagrant/pigsty
./bootstrap      # [OPTIONAL] install ansible & use offline package
./configure      # [OPTIONAL] preflight-check and config generation
./install.yml    # install pigsty modules according to your config.
[Complete] ===========================================

If you don’t have the Internet access, check offline installation for details. You can download the source tarball with the following links and upload them with scp, ftp, etc…

curl -o pigsty.tgz
tar -xvf pigsty.tgz -C ~ ; cd ~/pigsty ;  # download manually and extract to home dir

You can also use git to download the Pigsty source. Please make sure to check out a specific version before using.

git clone; cd pigsty;  git checkout v2.7.0;


configure will create a pigsty.yml config file according to your env.

This procedure is OPTIONAL if you know how to configure pigsty manually.

./configure # interactive-wizard, ask for IP address
./configure [-i|--ip <ipaddr>] [-m|--mode <name>]  # give primary IP & config mode
            [-r|--region <default|china|europe>]   # choose upstream repo region
            [-n|--non-interactive]                 # skip interactive wizard
            [-x|--proxy]                           # write proxy env to config
Configure Example Output
$ ./configure
configure pigsty v2.7.0 begin
[ OK ] region = china
[ OK ] kernel = Linux
[ OK ] machine = x86_64
[ OK ] package = rpm,dnf
[ OK ] vendor = rocky (Rocky Linux)
[ OK ] version = 8 (8.9)
[ OK ] sudo = vagrant ok
[ OK ] ssh = vagrant@ ok
[WARN] Multiple IP address candidates found:
    (1)	    inet brd scope global dynamic noprefixroute eth0
    (2)	    inet brd scope global noprefixroute eth1
[ IN ] INPUT primary_ip address (of current meta node, e.g
=>     # input the primary IP address itself, if there's multiple candidates
[ OK ] primary_ip = (from input)
[ OK ] admin = vagrant@ ok
[ OK ] config = el @ [tiny -> oltp]
[ OK ] configure pigsty done
proceed with ./install.yml

  • -m|--mode: Generate config from templates according to mode: (auto|demo|sec|citus|el|el7|ubuntu|prod...)
  • -i|--ip: Replace IP address placeholder with your primary ipv4 address of current node.
  • -r|--region: Set upstream repo mirror according to region (default|china|europe)
  • -n|--non-interactive: skip interactive wizard and using default/arg values
  • -x|--proxy: write current proxy env to the config proxy_env (http_proxy/HTTP_PROXYHTTPS_PROXYALL_PROXYNO_PROXY)

When -n|--non-interactive is specified, you have to specify a primary IP address with -i|--ip <ipaddr> in case of multiple IP address, since there’s no default value for primary IP address in this case.

If your machine’s network interface have multiple IP addresses, you’ll need to explicitly specify a primary IP address for the current node using -i|--ip <ipaddr>, or provide it during interactive inquiry. The address should be a static IP address, and you should avoid using any public IP addresses.

You can check and modify the generated config file ~/pigsty/pigsty.yml before installation.


Run the install.yml playbook to perform a full installation on current node

./install.yml    # install everything in one-pass
Installation Output Example
[vagrant@meta pigsty]$ ./install.yml

PLAY [IDENTITY] ********************************************************************************************************************************

TASK [node_id : get node fact] *****************************************************************************************************************
changed: []
changed: []
changed: []
changed: []
PLAY RECAP **************************************************************************************************************************************************************************                : ok=288  changed=215  unreachable=0    failed=0    skipped=64   rescued=0    ignored=0                : ok=263  changed=194  unreachable=0    failed=0    skipped=88   rescued=0    ignored=1                : ok=263  changed=194  unreachable=0    failed=0    skipped=88   rescued=0    ignored=1                : ok=153  changed=121  unreachable=0    failed=0    skipped=53   rescued=0    ignored=1
localhost                  : ok=3    changed=0    unreachable=0    failed=0    skipped=4    rescued=0    ignored=0

It’s a standard ansible playbook, you can have fine-grained control with ansible options:

  • -l: limit execution targets
  • -t: limit execution tasks
  • -e: passing extra args
  • -i: use another config


Once installed, you’ll have four core modules PGSQL, INFRA, NODE, and ETCD the current node.

The PGSQL provides a PostgreSQL singleton which can be accessed via:

psql postgres://dbuser_dba:DBUser.DBA@     # DBA / superuser (via IP)
psql postgres://dbuser_meta:DBUser.Meta@   # business admin, read / write / ddl
psql postgres://dbuser_view:DBUser.View@pg-meta/meta       # read-only user

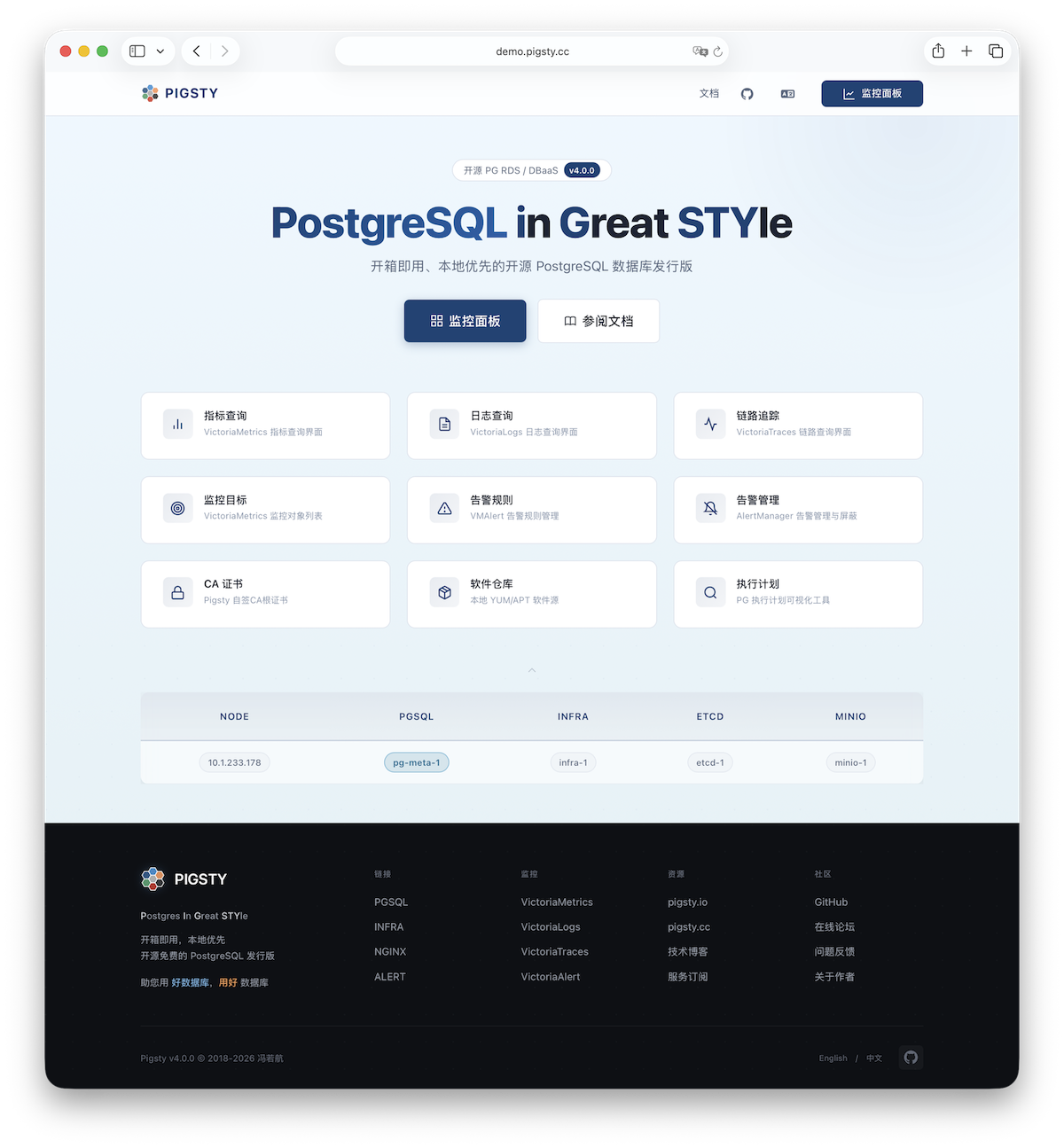

The INFRA module gives you an entire modern observability stack, exposed by Nginx on (80 / 443):

There are several services are exposed by Nginx (configured by infra_portal):

Component Port Domain Comment Public Demo
Nginx 80/443 h.pigsty Web Service Portal, Repo
AlertManager 9093 a.pigsty Alter Aggregator
Grafana 3000 g.pigsty Grafana Dashboard Home
Prometheus 9090 p.pigsty Prometheus Web UI

Grafana Dashboards (g.pigsty, port 3000) credentials, user: admin / pass: pigsty


You can access these web UI directly via IP + port. While the common best practice would be access them through Nginx and distinguish via domain names. You’ll need configure DNS records, or use the local static records (/etc/hosts) for that.

How to access Pigsty Web UI by domain name?

There are several options:

  1. Resolve internet domain names through a DNS service provider, suitable for systems accessible from the public internet.
  2. Configure internal network DNS server resolution records for internal domain name resolution.
  3. Modify the local machine’s /etc/hosts file to add static resolution records. (For Windows, it’s located at:)

We recommend the third method for common users. On the machine (which runs the browser), add the following record into /etc/hosts (sudo required) or C:\Windows\System32\drivers\etc\hosts in Windows:

<your_public_ip_address>  h.pigsty a.pigsty p.pigsty g.pigsty

You have to use the external IP address of the node here.

How to configure server side domain names?

The server-side domain name is configured with Nginx. If you want to replace the default domain name, simply enter the domain you wish to use in the parameter infra_portal. When you access the Grafana monitoring homepage via http://g.pigsty, it is actually accessed through the Nginx proxy to Grafana’s WebUI:

http://g.pigsty ️-> (nginx) -> (grafana)

If nginx_sslmode is set to enabled or enforced, you can trust self-signed ca: files/pki/ca/ca.crt to use https in your browser.

How to use HTTPS in Pigsty WebUI?

Pigsty will generate self-signed certs for Nginx, if you wish to access via HTTPS without “Warning”, here are some options:

  • Apply & add real certs from trusted CA: such as Let’s Encrypt
  • Trust your generated CA crt as root ca in your OS and browser
  • Type thisisunsafe in Chrome will supress the warning


You can deploy & monitor more clusters with pigsty: add more nodes to pigsty.yml and run corresponding playbooks:

bin/node-add   pg-test      # init 3 nodes of cluster pg-test
bin/pgsql-add  pg-test      # init HA PGSQL Cluster pg-test
bin/redis-add  redis-ms     # init redis cluster redis-ms

Remember that most modules require the [NODE] module installed first. Check modules for detail


Last modified 2024-05-16: update en/zh setup/install docs (ba224e3)
